TB7300 Transportable Repeater
Robust and portable repeater, for easy deployment in critical situations.
The Tait TB7300 Transportable Repeater is a rugged, rapidly deployable solution designed to extend network coverage and provide reliable communications during emergencies, tactical missions, or remote operations.
Description
Key Features
Specifications
General Specifications
Portable power for mission-critical communications

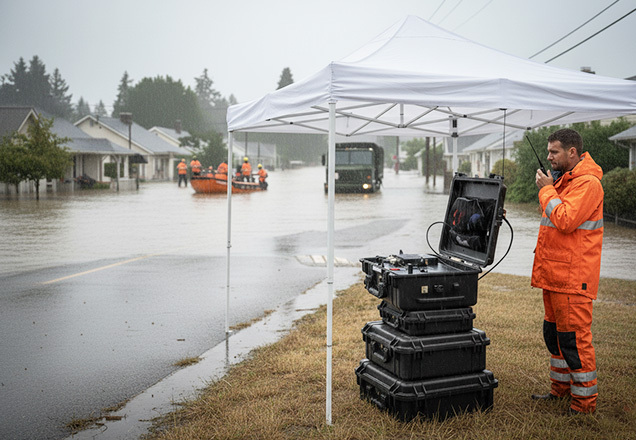

The Tait TB7300 Transportable Repeater is built for fast deployment in high-stakes situations — from natural disasters and tactical missions to firegrounds and crime scenes. This rugged, portable solution allows teams to quickly extend their network coverage or establish a dedicated, on-site communications system when existing infrastructure is unavailable.
Powered by the Tait TB7300 multi-mode platform, it supports analog conventional, DMR Tier 2 & Tier 3, and P25 Phase 1 operation, providing seamless interoperability and high spectral efficiency with 6.25 kHz equivalent TDMA performance.
Designed for reliability in challenging environments, the TB7300 Transportable Repeater combines tough construction, rapid setup, and flexible configuration — ensuring teams stay connected when it matters most.
| Features |
|---|
| • Multi-mode platform supporting Analog Conventional, AS-IP (Analog Simulcast over IP), DMR Conventional and Trunking (TDMA) and P25 Conventional and Trunking (Phase 1 FDMA) |
| • Simple change of mode through the web interface |
| • Ultra-narrow band 6.25kHz equivalent technology for DMR modes (2x TDMA channels in one 12.5kHz channel) |
| • Adherence to the DMR and P25 standards |
| • Easy and rapid deployment of single repeater operation |
| • Tait DMR Access and Express solution compatible |
| • DMR fallback into single site operation |
| • 12.5kHz analog repeater operation offers single site repeat |
| • Efficient system infrastructure scalability based on IP network connectivity |
| • Extensive range of remote management and monitoring capabilities with a security focus |
| • Built-in spectrum analyzer provides on-site diagnostics |

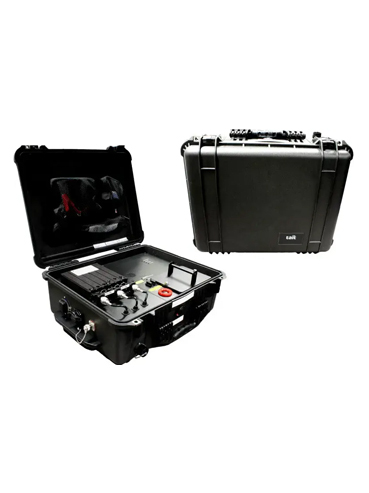

| • Design inside a rugged waterproof Pelican case |
| • AC/DC power supply inputs |
| • Internal SLA battery for rapid field deployment |
| • Options and accessories for better operational efficiency |
FREQUENCY BANDS
| Frequency | Range | Tait Band | Configuration |
|---|---|---|---|
| VHF | 136-174MHz | B1 | Factory set to 15W (Max 30W* typical) |
| UHF | 400-470MHz | H5 | Factory set to 15W (Max 25W* typical) |
| 700/800MHz | 762-870MHz | K4 | Factory set to 15W (Max 25W* typical) |
*The output power of the transportable unit is reduced due to the duplexer loss. This improves the battery shift life. If the unit is operated in a high duty cycle environment, for example the trunking control channel, output power should be limited to 15W.
REGULATORY
| USA (CFR 47) | B1, H5, K4 |
| Canada (RSS-119) | B1, H5, K4 |
| Europe (EN300-113, EN300-086, EN301-489) | B1, H5 |
| Australia/New Zealand (AS/NZS4768) | B1, H5 |
| Safety (EN60950, EN62368) | B1, H5 (K4 compliance pending) |
INTERFACE STANDARDS
| Digital Protocol (DMR) |
ETSI TS 102 361-1 V2.6.1, ETSI TS 102 361-2 V2.5.1, ETSI TS 102 361-3 V1.3.1, ETSI TS 102 361-4 V1.12.1 |
| General System Design | ETSI TR102 398 V1.5.1 |
TRANSMITTER
| Modulation types | 4FSK, FM, C4FM |
| P25 Modulation fidelity (TIA-102) | <2% |
| Adjacent channel power 12.5kHz static | 60dB, complies with EN 300 113 v2.2.1 (DMR) |
| Conducted spurious emissions | |
| VHF | <-36dBm 9kHz to 1GHz and <-30dBm 1GHz to 4GHz |
| UHF | <-36dBm 30MHz to 1GHz and <-30dBm 1GHz to 4GHz/12.75GHz |
| Output power | |
| VHF | Programmable 2-15W recommended (30W max) |
| UHF | Programmable 2-15W recommended (25W max) |
| Duty Cycle | 100% |
RECEIVER
| Modulation types | 4FSK, FM, C4FM |
| Radiated spurious emissions EIA-603-D | <-57dBm EIRP to 1GHz |
| Conducted spurious emissions | <-90dBm to 2GHz |
| P25 (TIA-102) | |
| Sensitivity | 0.22µV (-120dBm) @ 5% BER |
| Intermodulation response attenuation | 85dB |
| Adjacent channel rejection | 60dB |
| Co-channel rejection | 9dB |
| DMR | |
| Unfaded sensitivity ETS 300 113 | |
| Typical | -122dBm (0.18µV) @ 1% BER |
| Guaranteed | -120dBm (0.22µV) @ 1% BER |
| Selectivity ETS 300 113 @ 1% BER |
≥82dB (VHF), ≥79dB (UHF) |
| Intermodulation response attenuation | ≥78dB @ 1% BER unfaded |
| Blocking rejection > 1MHz |
100dB @ 1% BER |
| Analog | |
| Sensitivity | <-119dBm (0.25µV) (12dB SINAD, centre of switching range) at 25°C (de-emphasised response) |
| Selectivity (EIA-603) | 85dB (VHF & UHF) |
| Intermodulation | 80dB (ETSI) |
| Spurious response attenuation | ≥100dB (ANSI/TIA) and ≥90dB (ETSI) |
| FM hum and noise VHF/UHF |
45dB (ANSI/TIA), 50dB (ETSI) |
GENERAL
| Radio specifications | |
| Frequency stability | ±0.5 ppm |
| Channels | 4,000 |
| Channel spacing | 12.5kHz and 25kHz** in analog 12.5kHz provides 1 FDMA voice or data channel in P25 Phase 1 mode 12.5kHz provides 2 TDMA voice or data channels (6.25kHz equivalent) in DMR mode |
| Frequency increment/channel step | VHF 2.5/3.125kHz (or multiples of), UHF 5/6.25kHz |
| External frequency reference | 10MHz/12.8MHz (auto detect) |
| Packet data | 1/2 Rate, 3/4 Rate, Full rate, Single Slot |
| Physical specifications | |
| Dimensions (HxWxD) | Pelican case 1550 440 x 530 x 215 mm |
| Weight | Less than 23kg (50.7lb) or less than 19kg without battery assembly (41.9lb) |
| Operating temperature | -22°F to +140°F (-30°C to +60°C) with External DC and AC inputs, Battery isolated -22°F to +122°F (-30°C to +50°C) with Internal Battery connected |
| ESD rating | +/-4kV contact discharge and +/-8kV air discharge |
| Power specifications | |
| Power Supply | AC Mains (100-240V AC) and DC 11-15V |
| Battery specification | |
| Internal battery | 12V Panasonic 15Ah/12Ah SLA battery with built in charging capability (the charging works when AC supply is connected). Recommend maximum temperature is 60C. Whenever the temperature is above 50C, then we recommend the unit is powered from an external DC source. For example, a car auxiliary power source. |
| Standalone battery life | When the power is set to 15W or the duty cycle is set to 5%, then the shift life may reach 8 hours |
| External battery weight | 4.3 Kg (9.5lb) |
| Connectors | |
| Antenna N type female (both Rx and Tx connected to duplexor) Network Ethernet Port AC Mains input External DC input |
|
| Accessories | |
| Supplied with the unit | Schurter waterproof AC Mains socket to make up an external AC Mains cable (must be wired by an registered electrician) External DC Input Cable with Red and Black clamps (clips) Removable 12V SLA battery (fitted inside) |
| Spares | |
| Not supplied with the unit | 219-03252-00: CBL Battery Eliminator with 15A Fuse & Switch & ACC Plug (Battery DC cable with car acc plug – cigarette lighter port) TA2700-03: KIT Spares x2 Battery Pack Transpb TA2700 (Two spare batteries) |
|
**12.5kHz and 25kHz** in analog |
|
