Wide Area, Unified Mission Critical Data and SCADA systems
The Tait TD9300 is a mission-critical DMR data terminal designed for SCADA, telemetry,
and M2M communications over wide areas. Built around the DMR Tier 3 trunking standard,
it provides secure and reliable data connectivity with flexible interfaces for industrial and remote operations.
Description
Key Features
Specifications
DMR Data Connectivity for SCADA systems and Mission-Critical Operations
The Tait TD9300 includes DMR Tier 3 connectivity with multiple data interfaces, to simplify wide-area data communications. It supports the SCADA aware protocols and transparent IP data services, enabling efficient monitoring and control of remote equipment, and minimising the need for on site intervention.

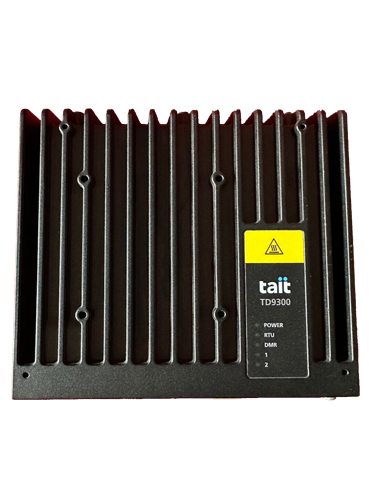

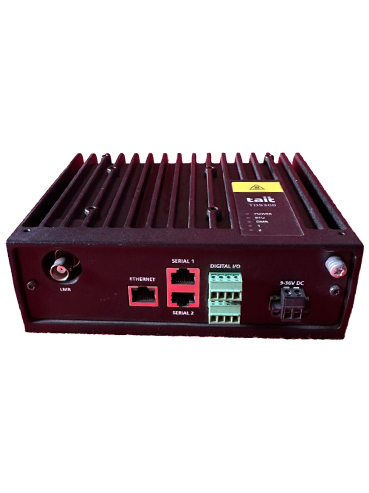

The TD9300 features a rugged die-cast metal chassis, flexible mounting options, wide input voltage range and adjustable RF output power for demanding environments. Serial and Ethernet interfaces add flexibility to the terminal and allow it to be integrated into existing industrial networks.
The solution includes AES-256 data encryption, terminal authentication, Web-based key management and stun/revive capabilities and security is built-in. Therefore, the TD9300 is well suited for the utilities, industrial infrastructure, energy and other applications requiring dependable long-range data communications.
| Features |
|---|
| Improve efficiency • Monitor and control devices via long range DMR, reduce travel & site visits • Centralised, standards based network management • Design, manage and maintain a single voice & data radio network |
| Designed to perform in demanding environments • Tough die-cast metal chassis protects in demanding environmental conditions • Protection and fold back mechanisms limit hardware failures, automatically restore service after fault cleared • Flexible mounting systems, DIN rail in both vertical and horizontal, on a 19 inch rack tray or wall mounted • |
| Security • AES-256 bit data encryption • Key management via web page configuration • Terminals must both register and be authenticated to access the network • Stun and revive to disable devices |
Rmote Site Monitoring
|
| Applications • SCADA System for distribution utilities • SCADA System for oil & gas utilities • SCADA System for control of irrigators |
| Data services • Packet data over traffic channels for telemetry, SCADA and customer specific applications • Native and Transparent IP data interface operation • Control channel short data messages, location, status and text |
General
| Input voltage | 9-36VDC |
| Power consumption (@ 24VDC) |
Tx current (peak) 3.1A for 25W RF power, 1.0A / 1.6A for 1W / 5W RF power
Tx power consumption (average, single slot) 40W for 25W RF power, 15W / 22W for 1W / 5W RF power
Standby (average) 5.3W
|
| Dimensions | 180mm (w) x 156mm (D) x 61mm (H) |
| Operating temperature | -22°F to 140°F (-30°C to 60°C) |
| Water and dust protection | IP40 in all orientations or IP41 with connectors facing down |
| Frequency stability | ±0.5ppm (-22°F to 140°F/-30°C to 60°C) |
| Channel spacing | 12.5kHz spacing 2.5 / 3.125 / 5 / 6.25kHz increment per channel step |
| Weight lb (kg) | 4.2 lb (1.9kg) |
| Mounting | DIN rail clip or panel mount bracket |
| ESD rating | +/-4kV contact discharge and +/-8kV air discharge |
| Air interface standard | DMR: ETSI TS 102 361 |
| Indicators | 5 status LEDs: PWR, RTU, DMR, 1, 2 |
| Packet Data | ½ Rate, ¾ Rate, Full rate |
| General Purpose digital I/O | Input: Opto-isolated, 18VDC max Output: Isolated, 170mA@18VDC |
Transmitter
| VHF (136-174MHz, 174-225MHz) | UHF (400-470MHz) | |
|---|---|---|
| Output power (configurable) | 25W: 25W, 10W, 5W, 1W | 25W: 25W, 10W, 5W, 1W |
| FM Hum and noise (TIA-603-D) | 12.5kHz: 40dB | 12.5kHz: 40dB |
| Adjacent channel power ratio (DMR, ETS 300-113) | 12.5kHz: 60dBc | 12.5kHz: 60dBc |
| Conducted Emissions | 25W: -36dBm | 25W: -36dBm |
| Duty Cycle |
5W: 80% @ 25°C 12W: 75% @ 25°C 25W: 65% @ 25°C |
25% @ 60°C 20% @ 60°C 15% @ 60°C |
Receiver
| VHF (136-174MHz, 174-225MHz) | UHF (400-470MHz) | |
|---|---|---|
| Sensitivity (DMR) 5% BER | -119dBm (0.25µV) | -120dBm (0.25µV) |
| Intermodulation rejection (EIA603D) | 81dB | 76dB |
| Intermodulation rejection (ETS 300) | 72dB | 66dB |
| Spurious response rejection (DMR) (ETS 300-113) | 72dB | 76dB |
| FM hum and noise (TIA-603-D) | 12.5kHz: 45dB | 12.5kHz: 45dB |
| Conducted spurious emissions | -57dBm | -57dBm |
| Adjacent Channel Selectivity (TIA/EIA one tone) | 65dB | 64dB |
| Adjacent Channel Selectivity (DMR, EN 300 113) | 60dB (136-174MHz), 62dB (174-225MHz) | 61dB |
Regulatory Data
| USA | Canada | Europe | Australia/New Zealand | |
|---|---|---|---|---|
| VHF (136-174MHz) | CFR 47 | RSS-119 | EN300-113, EN301-489, EN60950 | AS/NZS4768 |
| VHF (174-225MHz) | CFR 47 | - | - | - |
| UHF (400-470MHz) | CFR 47 | RSS-119 | EN300-113, EN301-489, EN60950 | AS/NZS4768 |
| Safety | EN 60950-1, ANSI/UL 60950-1, CAN/CSA-C22 60950-1-07 | |||
Other Standards
| Environmental |
Low Pressure (Altitude): MIL-STD-810G 500.5, Proc 2 High Temperature: MIL-STD-810G 501.5, Proc 1,2 Low Temperature: MIL-STD-810G 502.5, Proc 1,2 Temperature Shock: MIL-STD-810G 503.5, Proc 1 |
Humidity: MIL-STD-810G 507.5, Proc 2 Vibration: MIL-STD-810G 514.6, Proc 1 Shock: MIL-STD-810G 516.6, Proc 1 |
