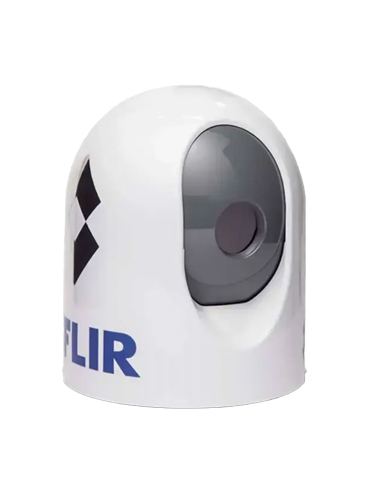

Flir MD 625
Compact fixed-view maritime thermal cameras with standard and high resolution.
The FLIR MD Series is a compact, fixed view marine thermal camera that helps improve nite time navigation and situational awareness in low light conditions. It's easy to install and integrate with compatible chartplotters and marine displays, offering reliable thermal vision to help identify obstacles and navigate with greater confidence.
Description
Key Features
Specifications
Marine Thermal Camera for Enhanced Night Vision and Navigation

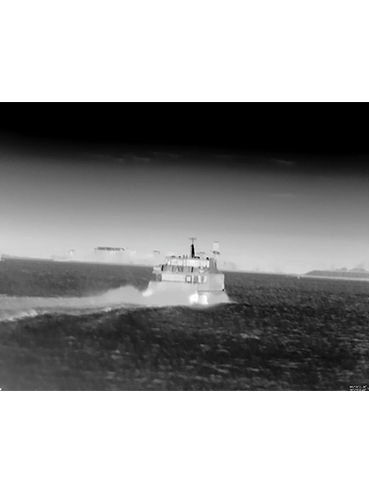

The FLIR MD Series offers thermal night vision to the marine environment in a compact, rugged design. It supports boaters in identifying obstacles and increasing their awareness when visibility is poor or at night.
Easy to install, the camera provides an analogue video output for connecting to compatible marine monitors and chartplotters. The Ethernet interface also allows the camera to be controlled from a compatible chartplotter or joystick, including on-screen settings.
With a waterproof housing, simple integration, and fixed-view thermal imaging, the MD Series is a practical solution for enhancing navigation and visibility after dark.
| Features |
|---|
| Compact Size The MD Series marine thermal camera's small footprint makes it easy to install. Only 5.2 cm (6 in) in diameter and 17.8 cm (7 in) tall. |
| Fixed View MD Series cameras feature a stationary thermal sensor for detecting obstacles and collision avoidance. |
| Standard or High Resolution Choose the standard resolution MD324 or the high resolution MD625 for longer range. |
Thermal Camera
| E-Zoom - Thermal | 2x |
System
| Power Consumption | 4.8 W nominal; 12.5 W max |
| Warranty | 2 year |
Environmental
| Automatic Window Defrost | Standard at Power-Up |
| EMI | IEC 60945 |
| Lightning Protection | Standard |
| Operating Temperature Range | -25°C to +55°C |
| Salt Mist | IEC60945 |
| Shock | 15 g vertical, 9 g horizontal |
| Storage Temperature Range | -40°C to +85°C-40°C to +85°C |
| Vibration | IEC 60945; MIL-STD-810E |
| Water Ingress | IPx6 |
| Wind | 100 knot (115.2 mph) |
Physical
| Size | 6" dia. × 7" ht. |
| Weight | ~ 3 lbs |
